How to install Windows XP on CentOS 5 ?
- Thread starter Netguy
- Start date
- Status
23 comments
MirandaWright's
Active Member
In this post I will explain on how to Install windows XP on Xen virtualization engine in CentOS 5.
In comparison to VMware based virtualization .. this one might be a bit behind in term of functionality and user-friendliness.
Prior to the installation process.. make sure you had the Windows XP Installation CD handy or
copy it into the system itself in iso format..with these command.
Read through the feature list before starting..
assume you CD-Drive is /dev/hda and the destination as /data/iso/
Copy from Windows Installation CD to ISO files
dd if=/dev/hda of=/data/iso/XP3_3282_V2_EN.iso
then only start ..
First of all have to make sure ,youve got the xen kernel already installed.
if not having yet. better off start with
Installation Virtualization Group
yum groupinstall "Virtualization"
then all the virtualization package will be installed..
to verify
yum install qemu
it shall install the emulator that need to run windows O/S
after all packages has been install.. you can start the virtual machine manager
using commad
run the virtual machine manager
virt-manager
or using shortcut at Application -> System Tools -> Virtual Machine Manager

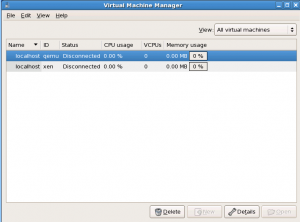

something like this will appear.
highlight the localhost qemu and press File-> Open Connection.
the status will change to Active
and now you can click the New button.
Press Forward.. it will asked for the new system name.
Put any name that make sense to you.. and press Forward.
and it will asked for virtualization method..
in this case it will be fully virtualized with some choice of architecture to be selected.
and press Forward button.. and it will asked for Locating installation media.
here you can specify where to get the installation media.. as per defined on the first paragraph in this article.
Press Browse button and point it to the iso image that had been copied earlier.
be it at
location of the XP iso
/data/iso/XP3_3282_V2_EN.iso
or anywhere you have put it.
and also specify the OS Type .
and OS Variant..
Select windows and -> Microsoft Windows XP.
then it will asked to assign the storage
Here you can select either pointing to real physical device or just to a single file..
Press Forward and it will asked for Network interface to connect to host network.
then time to Allocate Memory & CPU..
and press Forward.. ready to begin screen will pop up..
whenever you hit the Finish button.. it will automatically start with.. creating storage system..
Creating domain.. and then starting to install windows..
hmm.. it will go on.. like the normal windows xp..
but dont be surprised if CPU load shoot up.. .. my previous attempt the CPU load will go as high as 26.7..
.. just as normal process ..
wait.. and.. wait.. till it done..
here can notice the CPU load will go up..
hmm.. here I did play a bit with the display..
so that when i use ssh with port forwarding.. to the box from my other machine (nbnamran)
SSH with port forward feature command
ssh root@machine-ip -L5900:127.0.0.1:5900
i can view the xp machine with just
VNC Viewer command
vncviewer localhost
..
and.. thats about it..
p/s : this one project failed me because.. I am unable to use my USB Network Card(dongle) with the windows XP XEN virtualization guest.
there are simply no option to attach USB dongle from the Virtual Hardware . some were pointing to manual hack at the config.. but to no avail..
some got it worked to attach USB thumbdrive.. but not that simple as the VMware Player interface .. (which can just unplug-plug. ).. lol.
and my personal comment of CPU load.. it is very irriating.. as same machine to use VMware virtualization wouldnt suffer that much CPU load.. though.
may be some time later to write about VMware virtulization instead.. *sigh*
In comparison to VMware based virtualization .. this one might be a bit behind in term of functionality and user-friendliness.
Prior to the installation process.. make sure you had the Windows XP Installation CD handy or
copy it into the system itself in iso format..with these command.
Read through the feature list before starting..
assume you CD-Drive is /dev/hda and the destination as /data/iso/
Copy from Windows Installation CD to ISO files
dd if=/dev/hda of=/data/iso/XP3_3282_V2_EN.iso
then only start ..
First of all have to make sure ,youve got the xen kernel already installed.
if not having yet. better off start with
Installation Virtualization Group
yum groupinstall "Virtualization"
then all the virtualization package will be installed..
to verify
yum install qemu
it shall install the emulator that need to run windows O/S
after all packages has been install.. you can start the virtual machine manager
using commad
run the virtual machine manager
virt-manager
or using shortcut at Application -> System Tools -> Virtual Machine Manager
something like this will appear.
highlight the localhost qemu and press File-> Open Connection.
the status will change to Active
and now you can click the New button.
Press Forward.. it will asked for the new system name.
Put any name that make sense to you.. and press Forward.
and it will asked for virtualization method..
in this case it will be fully virtualized with some choice of architecture to be selected.
and press Forward button.. and it will asked for Locating installation media.
here you can specify where to get the installation media.. as per defined on the first paragraph in this article.
Press Browse button and point it to the iso image that had been copied earlier.
be it at
location of the XP iso
/data/iso/XP3_3282_V2_EN.iso
or anywhere you have put it.
and also specify the OS Type .
and OS Variant..
Select windows and -> Microsoft Windows XP.
then it will asked to assign the storage
Here you can select either pointing to real physical device or just to a single file..
Press Forward and it will asked for Network interface to connect to host network.
then time to Allocate Memory & CPU..
and press Forward.. ready to begin screen will pop up..
whenever you hit the Finish button.. it will automatically start with.. creating storage system..
Creating domain.. and then starting to install windows..
hmm.. it will go on.. like the normal windows xp..
but dont be surprised if CPU load shoot up.. .. my previous attempt the CPU load will go as high as 26.7..
.. just as normal process ..
wait.. and.. wait.. till it done..
here can notice the CPU load will go up..
hmm.. here I did play a bit with the display..
so that when i use ssh with port forwarding.. to the box from my other machine (nbnamran)
SSH with port forward feature command
ssh root@machine-ip -L5900:127.0.0.1:5900
i can view the xp machine with just
VNC Viewer command
vncviewer localhost
..
and.. thats about it..
p/s : this one project failed me because.. I am unable to use my USB Network Card(dongle) with the windows XP XEN virtualization guest.
there are simply no option to attach USB dongle from the Virtual Hardware . some were pointing to manual hack at the config.. but to no avail..
some got it worked to attach USB thumbdrive.. but not that simple as the VMware Player interface .. (which can just unplug-plug. ).. lol.
and my personal comment of CPU load.. it is very irriating.. as same machine to use VMware virtualization wouldnt suffer that much CPU load.. though.
may be some time later to write about VMware virtulization instead.. *sigh*
NewEraCracker
Active Member
lol. u want to install a GUI OS via SSH. good luck with that >_>
monsterfish
Active Member
get it from katz.cd
NewEraCracker
Active Member
I PMed you a few links
Good luck.
Good luck.
Is that so? Please do share the links then =)
Thats what I tough too!
faizulhaque
Active Member
as i know about windows Plat form. when Microsoft Installing process come to write in MBR (Master Record Boot i thing so). it will first clear it. means when you start installation of XP on Linux Without virtualization. You will delete alternatively delete you MBR record. so be-careful on doing the same.
